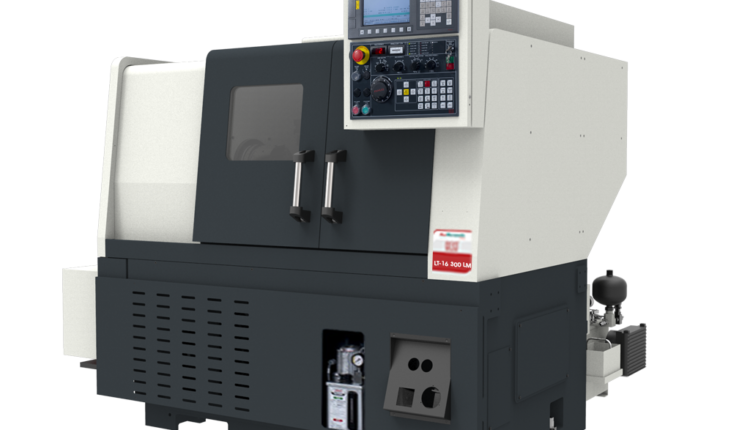

LT-16-300-LM by Ace Micromatic

By Editorial On Jun 15, 2021

Product Description

The LT series is a 2-axes horizontal turning center designed to provide complete customization and component-specific solutions to customers. Customized offerings include automation, fixturing, tooling, TPM features, process development, part programming & prove out.

Key Specifications

Description

Units

Values

Capacity

Swing Over Bed	mm	450
Swing Over Carriage	mm	225
Maximum Turning Dia	mm	320
Maximum Turning Length	mm	300
Distance between Centres	mm	296
Maximum turning length from chuck jaw face	mm

Spindle

Spindle Size / Nose		A2-5
Max.Bar Capacity	mm	25*
Bore through Spindle	mm	52.5
Max.Spindle Speed	rpm	4000
Spindle Motor Power-Fanuc (Continuos)	kW	5.5
Spindle Motor Power-Fanuc (30 min)	kW	NA
Spindle Motor Power-Fanuc (15 min)	kW	7.5
Spindle Motor Power-Siemens (Continuos)	kW	7
Spindle Motor Power_Siemens: (30 min)	kW
Spindle Motor Power_Siemens (S6-40%)	kW	8.4
Full Power Range-FANUC	rpm	1333-3000
Full Power Range-Seimens	rpm	1000-3420
Standard Chuck Size	mm	165

Axes

X-Axis Stroke	mm	160
X-Axis Rapid	m/min	30
X-Axis Guideways		LM guideways
Z-Axis Stroke	mm	310
Z-Axis Rapid	m/min	30
Z-Axis Guideways		LM guideways

Tooling

Turret Type		BTP-80
No of Stations		8
Max.Boring Bar Dia	mm	40
OD Turning Tool Size	mm	25×25
