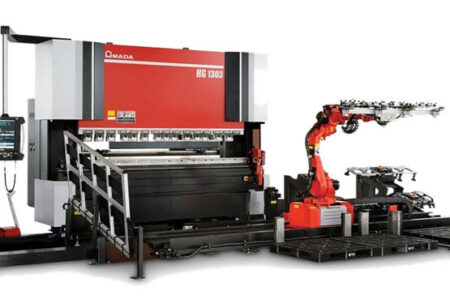

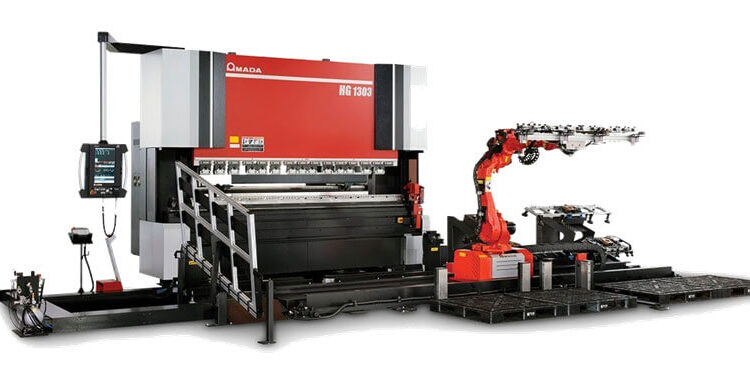

HG-Rm with a new hybrid drive system is integrated with a single 7-axis articulated robot and a series of intelligent devices aimed especially at bending complex rib and large panel parts.
- » Simple operation with a single Robot (7-axis articulated Robot)
- » Regripping device for panel
- » Secure production by squaring table
- » Accurate loading of ribbed parts and panels
- » Reduced trial bending and reliable production (Bi-S)
- » Regripping device for rib parts
- » Reduced setup time and expansion of the bending range
- » Easy operation
- » Dedicated CAM
| Specifications | ||||
| Material | Thickness | mm | 0.5 – 6.0 mm | |
| Max. workpiece size | mm | 1250 x 2500 | ||
| Min. workpiece size | mm | 100 x 500 | ||
| Press Brake | Model | HG1303 | ||
| Tonnage | kN | 1300 | ||
| Open Height | mm | 520 | ||
| Stroke Length | mm | 250 | ||
| Robot | Model | HG Robot 80 | ||
| Axis | Robot: 6 axis motion and 1 axis of travel | |||
| Payload | kg | 80 including the gripper | ||
* Specifications, appearance, and equipment are subject to vary without notice by reason of improvement or regional requirement.
