- Most compact milling on a footprint of only 3.15 m² and a width of only 1,285 mm
- Optional 5-axis simultaneous machining with highest milling performance and free chip fall due to the swiveled A-axis
- WH 3 Cell: Automation solution with only 1.15 m² additional floor space
- Optimum accessibility to the work area without restrictions
- Quality components from DMG MORI:
- Inline spindle with 15,000 min-1 (optionally 24,000 min-1)
- Tool magazine with 15 places (optionally 25 places)
With a footprint of 3.15 m² and a minimum dismantling height of 2,090 mm, the DMP 35 makes optimum use of even tight production areas.
DMG MORI complements the segment of high-speed compact machining centers with the new DMP 35. It is based on the same proven quality components as the DMP 70, enabling DMG MORI to produce complex workpieces from a wide range of materials from aluminum to titanium highly efficiently, reliably, and precisely – and in the smallest possible space. With a footprint of 3.15 m² and a minimum dismantling height of 2,280 mm, the DMP 35 makes optimum use of even tightly dimensioned production areas.
“In particular, users in competitive industries such as manufacturing and medical technology benefit from the added spatial value of the DMP 35,” emphasizes Fabian Suckert, Managing Director of DECKEL MAHO Seebach. Traverse paths of 350 x 420 x 380 mm are more than impressive on a width of only 1,285 mm. At the same time, DMG MORI has equipped the DMP 35 so uncompromisingly already in the standard version that it meets the requirements of demanding production at all times: an inline spindle with 15,000 rpm, direct absolute path measuring systems in all axes, and the tool magazine with 15 places for tools up to 150 mm long. Optionally, 25 tool places are possible, which only marginally increases the width of the DMP 35 to 1,410 mm. The modular system also includes a spindle with 24,000 min-1 and an HSK-A40 or SK 30 interface.
Highly flexible thanks to optional 5-axis simultaneous machining
The equipment of the DMP 35 includes an inline spindle with 15,000 min-1, direct absolute path measuring systems in all axes, and the tool magazine with 15 places for tools up to 150 mm long.

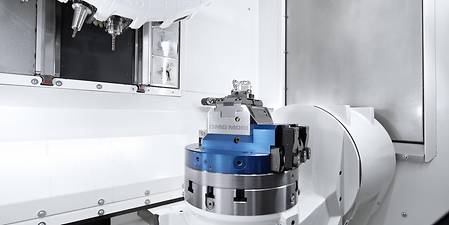

The DMP 35 becomes a true all-rounder with the integrated table for 5-axis simultaneous machining, which is also available. The highly stable design of the compact machining center ensures vibration-free and highly accurate milling in applications with the highest quality requirements with free chip fall. DMG MORI also offers an internal coolant supply with 40 bar and a chip conveyor with a capacity of up to 1,000 cm³/min. This and the internal doors ensure high process reliability in production.
WH 3: Compact automation for even more productivity
With only 1.15 m² of additional floor space, the WH 3 on the DMP 35 is the most compact automation solution from DMG MORI. Users, thus, increase their productivity many times over. The DMP 35 autonomously produces fully automated components with short changeover times in top quality. DMG MORI customers now benefit from innovative programming. With the new input programming on the WH 3, the setup process can be enormously simplified and shortened. In this way, even inexperienced programmers can set up components quickly and easily. Combined with the WH 3 and the right technology, the DMP 35 becomes the right manufacturing solution. At the DMG MORI DIGITAL EVENT, interested parties can see the performance of the compact machining center for themselves using the example of 6-sided complete machining.
