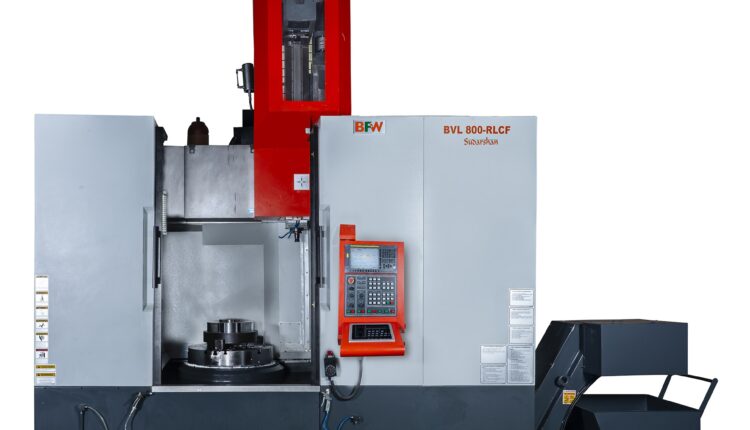

BVL RLCF series is designed to handle large, heavy workpieces, and provides manufacturers with a reliable high-performance solution for heavy-duty applications. Basic Turning, Boring, Deep Boring, etc. Turnmill applications viz. Drilling, Tapping, Milling, Helical Interpolation, Thread Milling & Profile Machining Etc.
Overview & Features
Brand Story
BFW Vertical Turning machines have been trademarked as Sudarshan series. With the high speed, greater flexibility & Rigidity BFW Sudarshan series proved as a true revolving profits partner in the shopfloor.
Unique Features
- High Rigid Column Structure
- Continuous feed for Table (Cf Axis) by Dual Motor technology with Electronic Pre-load to ensure high accuracy interpolation
- Larger Size Cross Roller Bearing for Table Drive for High Axial, Radial and Tilting Load
- Heavy Duty Right Angle Head for Radial drilling, Keyway milling operations Etc.
- Hinged Steel Belt Conveyor for Steel Chips
Standard Features
- Geared table spindle, supported by taper roller bearing & thrust ball bearing with re-circulating oil lubrication system
- Machine lamp, 3 tier lamp & manual pulse generator on machine control panel
- Hydraulic counterbalance for RAM
- Mounting pads with leveling screws
- ATC with 12 tool – Umbrella type
Optional Features
- Live spindle on RAM-11/15 kW AC spindle motor with speed range – 50 to 2400 (220 Nm)
- C – axis for accurate indexing to carry out drilling & tapping function with high-resolution hollow shaft encoder & hydraulic table
- clamping during cutting
- CF axis for continuous interpolation of C-axis (rotation of table) & two linear axis ( X & Z axis) by random control of two spindle motors
- Slat type chip conveyor (for cast iron and aluminum chips) with chip trolley in-lieu of chip tray
- Coolant thru spindle (pump cap-25 pm & 16 bar pressure) hydro cyclone
