Vibration-damped boring bar in a variable exchangeable head system for turning

Advantages of the exchangeable head system with vibration-damped boring bar

• In combination with vibration-damped boring bars, the concept of the boring bar with exchangeable cutting heads is particularly ideal for operations with long overhangs and a tendency for vibrations
• Modular design: high variability, flexibility and versatility
• Tool wear occurs mainly on the exchangeable cutting head; a holder therefore lasts longer Costs are minimized
• All exchangeable cutting heads are equipped with high-performance cooling: highly efficient cooling of the cutting edges means longer tool lives‭

Increase in productivity through suppressed vibrations

• Improved surface quality
• Improved process security
• Improved chip clearance
• Longer tool service life
• Protection of the machine spindle

Reduced costs per component with improved quality!

Results with conventional boring bar:

Results with vibration-damped boring bar:

PCLN
95°

PDUN
93°

PDQN
107.5°

PWLN
95°

SCLC
95°

SDUC
93°

SDQC
107.5°

for
internal thread

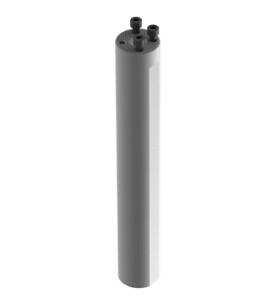

cylindrical

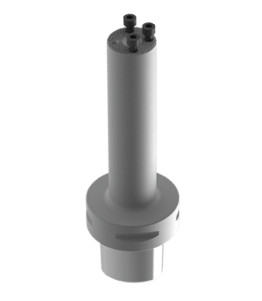

PSC 63
vibration-damped

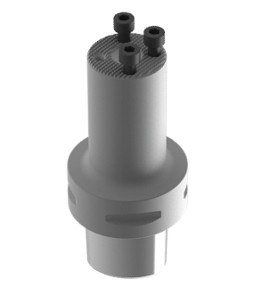

PSC 40/50/63

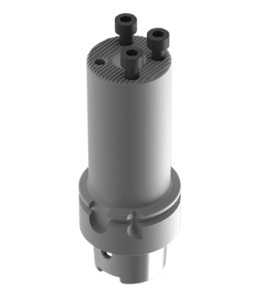

HSK-T 40/63/100
