Overview

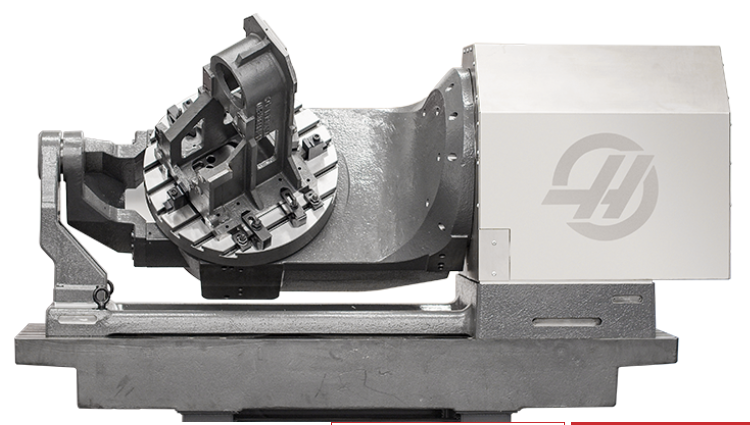

The TR500SS is a high-speed, dual-axis trunnion rotary table that offers maximum rigidity and accurate performance for 3+2 and full 5-axis machining of large parts.
Requires a Haas mill with 4th- and 5th-axis drives, and NGC software version 100.20.000.1110 or later, for true 4th- and 5th-axis operation. Not available for stand-alone operation.
NOTE: Installing the TR500SS on VF-6 through VF-14 VMCs requires the EC8 extended clearance option.
- Add 4- and 5-axis capabilities to your machine
- Easy plug-and-play connection to Haas machines
- Industry-leading performance and capabilities
- Heavy-duty design
- Made in the USA
TR500SS Sneak Peek
Take a quick look at what will soon be our largest trunnion rotary table in production. The TR500SS takes the well-developed trunnion assembly from our popular UMC machine and turns it into a very large and very fast 5-axis rotary table. More to follow in the coming months.
Specification
| PLATTER | S.A.E | METRIC |
|---|---|---|
| Platter Diameter | 19.70 in | 500 mm |
| Max Weight on Platter | 660 lb | 300.0 kg |
| Part Swing Max | 27.0 in | 686 mm |
| SPINDLE – A (TILT) | S.A.E | METRIC |
|---|---|---|
| Max Speed | 170 °/sec | 170 °/sec |
| Max Torque | 2240 ft-lbs | 3037 Nm |
| Center Height | 18.000 in | 457.00 mm |
| Timing | 1:1 | 1:1 |
| Brake Torque @ 100 psi/6.9 bar | 2000 ft-lbs | 2712 Nm |
| SPINDLE – B (ROTARY) | S.A.E | METRIC |
|---|---|---|
| Max Speed | 179 °/sec | 179 °/sec |
| Max Torque | 1854 ft-lbs | 2514 Nm |
| Pilot Bore Diameter | 1.969 in | 50.00 mm |
| Brake Torque @ 100 psi/6.9 bar | 900 ft-lbs | 1220 Nm |
| INDEXING – A (TILT) | S.A.E | METRIC |
|---|---|---|
| Travel | 120 ° to 120- ° | 120 ° to 120- ° |
| Resolution | 0.001 ° | 0.001 ° |
| INDEXING – B (ROTARY) | S.A.E | METRIC |
|---|---|---|
| Travel | 360 ° | 360 ° |
| Resolution | 0.001 ° | 0.001 ° |
| AIR REQUIREMENTS | S.A.E | METRIC |
|---|---|---|
| Air Pressure Max | 120 psi | 8.2 bar |
| GENERAL – B (ROTARY) | S.A.E | METRIC |
|---|---|---|
| Operating Temp (max ambient) | 100 °F | 100 °F |
