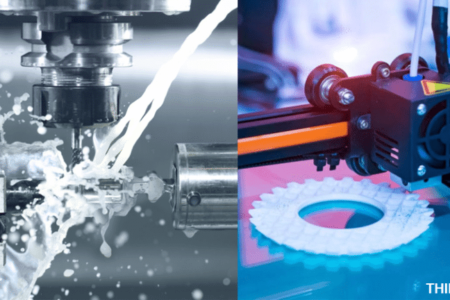

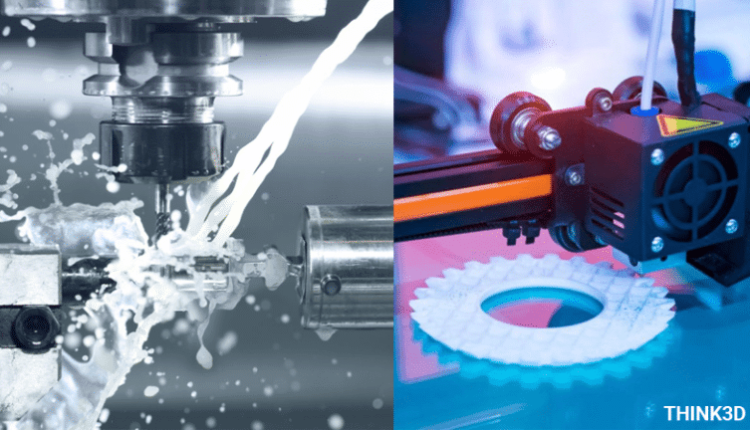

3D printing is making the news. Whether it be 3D-printed firearms or the story of a breathing impaired 3-month-old child who was saved by a biodegradable splint made in under 24 hours, 3D printing has become a hot topic. One of the biggest reasons for the publicity surrounding 3D printing is that it is still rather new to us. Most people have little knowledge of the purpose, practicality, process, and capabilities of 3D printing. This is exacerbated by the fact that 3D printing is quite complicated, which makes it challenging for 3D print shops to market this new process to consumers. These unknowns have prompted many people in the manufacturing industry to ask, “What is the difference between a 3D printer and a CNC router?”
Rapid Prototyping vs Mass Production :
The 3D printer is a relatively new concept that hasn’t been utilized to its full potential yet. The capabilities of the 3D printer are still being explored. It’s becoming clear that, while the 3D printer and CNC router appear to do similar things, they are going to have different commercial purposes and markets. The CNC router is a significant industrial tool for large-scale and scalable mass production. It can create large dense products for high-tech machinery with great efficiency. 3D printers, on the other hand, are more suited for domestic, creative, and medical purposes with rapid prototyping. Without the scalability of being able to produce a large number of products in a short time, printers are lending themselves to individually-produced items, which is ideal for the customized consumer industry. 3D printers can create small industrial parts but their inability to mass-produce means they’re better for personal creativity and household items such as unique gifts, custom iPhone cases, art pieces, and so on.
Additive vs Subtractive :
The first major difference between CNC and 3D printing is that they have opposite processes. CNC machining works by taking a material mass and subtracting from it to create a unique part while 3D printing works by building up materials from nothing to manufacture a part. CNC routers work by using computer-aided design software (CAD) to create a blueprint of a particular part and then proceed with creating that blueprinted part by using computer-aided manufacturing software (CAM) to cut away at a portion of material. This process is subtractive where the finished result is a refined part that is comprised of less material than it had in its unrefined state. The 3D printer is different in that it works in the opposite direction. Although the 3D printer similarly uses CAD and CAM software to map and create its products, it creates them differently through an additive process. Instead of starting with more material and cutting it away, it creates parts by adding layers of material until the end product is formed.
Heavy Material vs Light Material :
The CNC router is relied upon by the aerospace, automotive, and other industrial segments because CNC machining has the ability to manufacture heavy material with high precision. The 3D printer has substantial limitations in creating multi-material parts and cannot layer denser materials. For the 3D printer, the additive layering process is fickle and underdeveloped making it complex for a single material product. It is nearly impossible to produce an item that requires more than one material type with 3D printing construction. While 3D printing has moderate prototyping functionality with plastic, it has yet to show any capacity for denser metals or heavier materials. The CNC router has heat management systems and a powerful servo mechanism equipped to deal with heavy, dense materials that the 3D printer cannot handle.
Small Products vs Large Products :
The 3D printer, at this time, cannot create any product bigger than a mini-fridge and something of that size can take the 3D printer a few days to complete. The layering process is not meant for the creation of large products. This is a huge advantage for CNC routers. The 3D printer primarily succeeds on the layering of smaller simpler designs. The CNC router is a powerhouse industrial tool that has the capacity to produce the largest of parts such as those needed for aviation, nautical, construction, and automotive.
Quality vs Hand Finishing :
For the industries that the CNC router serves, one of the most important differences between these two machine types is their quality and tolerance sensitivities. While 3D printers are breaking into smaller markets with custom items, the products still require some form of hand finishing after production. This makes 3D printers less efficient than CNC machines. The refinement element is missing in 3D print production along with the tolerance for creating very specific and accurate products. Highly-detailed products that require a very high tolerance for accuracy are the expertise of a specialized CNC router. While there are some similarities between the 3D printer and CNC router, they will serve different purposes in their processes, production capacities, material loads, product sizes, and refinement abilities.
