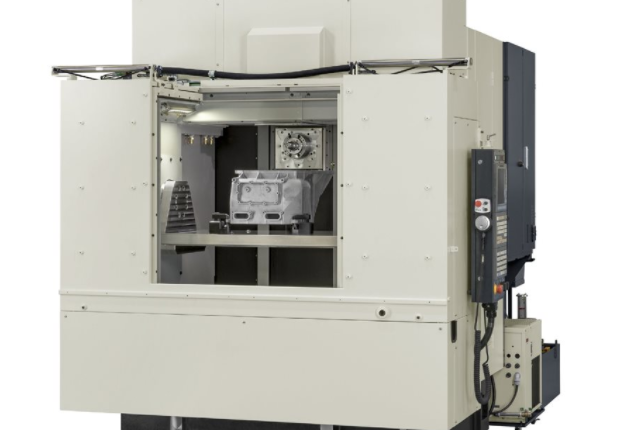

Makino J6: Horizontal Machining 4-Axis/5-Axis
High-speed, high production, single table horizontal machining center family
Makino’s J-Series Horizontal Machining Centers are designed to be the core of the high volume, flexible CNC-based machining lines. They feature the combination of a stacked axis design and single table configuration while promoting highly efficient chip removal from the machining area.
Technical Specification
The J6 family of HMC’s is designed specifically around machining of near-net-shape, non-ferrous workpieces, with a compact floor layout, in three kinematic variations. Two four-axis J6’s are offered, with either an A-axis or a B-axis; and one five-axis J6 is also offered, with a B over A-axis configuration. True three-point leveling allows for quick machine installation and long-term stability of equipment alignments.
Please contact your Makino representative to learn more about this machine, which can be tailored to your specific high-volume machining system needs.
Pallet: Differs by kinematic variant (consult us for details)
X: 29.5” Y: 22.0” Z: 19.9” (“stroke-up” std. for X, Y & Z)
A Axis: Unlimited (A-axis type) +90° / -180° (A/B-axes type)
B Axis: Unlimited (A-axis, A/B-axes types)
Spindle RPM: 16000 (12000 Opt.)
Spindle Taper: HSK-A63
Rapid Traverse: 2,953 ipm
Cutting Feedrate: 1,968 in/min
Maximum Workpiece: Differs by kinematic variant (consult factory for details)
Maximum Payload: 1,100 lbs. (B-axis type) 880 lbs (A-axis, A/B-axes types)
ATC Capacity: 30 (40 Opt.)
Chip to Chip: 2.0 sec +/- 10%
Maximum Tool Diameter: Ø3.9” (Ø4.9” w/limitations)
