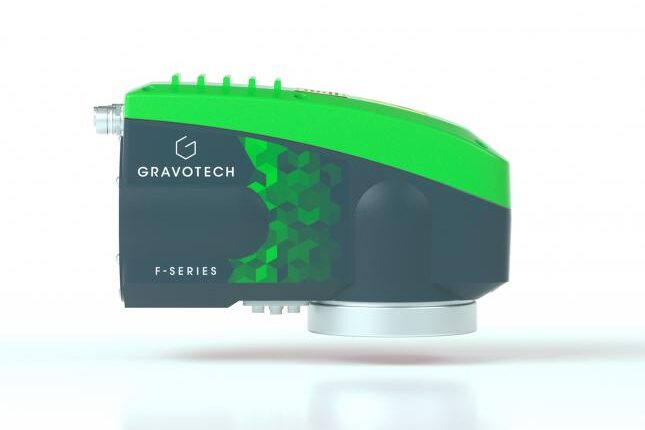

Integrable Laser Marker by Gravotech

Our powerful and high-quality Fiber Laser engraver performs precise markings in very short cycle times. Compact, with great communication links and simple to integrate into a manufacturing process, it is the perfect laser engraver for metal and plastics.

• Compact
  The heavy-duty design, based on a cast aluminum structure, and high-quality optical components guarantee strength and low maintenance. Whether integrated on production lines or robotic cells, its implementation is easy in all mounting positions. The laser can be oriented to the part surface to significantly reduce installation times and costs.
• Industrial
  Equipped to meet the needs of Industry 4.0, the fiber laser engraver is equipped as standard with full network communication ports allowing full compatibility with all PLCs brands and ensure quick and cost-effective integration.
• Powerful
  This laser marking machine is available in several powers, 20W, 30W, and 50W. 20W is adapted for most of the applications for surface marking, 30w is the solution for your fast and high-contrast markings, and 50W is the most suitable solution for deep laser markings.

Technical Specifications

Laser classification

Class 4 Laser system, possibility to switch in Class 1 for integration on a station or equipped with Mini inline module.

Frequency (kHz)

20W / 30W / 50W: 2-200

Options: Module 3D / Autofocus / Vision Manager

Beam O (μm): from 40

Long fiber cables (3m in standard / 5m in option) to remove your online integration constraints

IP rating: IP54 for marking head

Casted Aluminum head

Double protection:

• aluminum ring
• lens protection

No cooling fan and no openings in the head in – Dust filter for the control unit

Firmware update via USB port

Restore a complete backup

Component easily replaced: Rail mounted source, easy access to electronic boards

Communication: Ethernet TCP / IP ; Profinet; Ethernet IP; Dedicated I / O (SUB D37); 8I / 8O; RS232; USB (x3)

Key Features

Designed for Harsh Environment

The fiber laser marker is the marking solution dedicated to harsh environments.

His aluminum cast housing is powerful, rigid, reduces vibration and shocks, IP rating Head Ip 54 for better protection of the head, and reduces long-term maintenance costs, Dust filter, no cooling fan for electronics and source.

Great Communication Links

To facilitate and reduce the programming times of your PLCs, fiber laser marker is compatible with a wide range of communication protocols:

• Ethernet TCP/ IP, RS232,
• standard 8 I / 80,
• Dedicated I/O via DB-37

and optional industrial communication protocols such as Profinet & Ethernet IP.

Lasertrace- Marking and Identification Software

Developed by Gravotech and enriched by numerous application experiences, this software includes all the functions necessary for identification and traceability.

Easily mark your parts, with text, serial numbers, logo, generate unique codes like Datamatrix, barcodes, QR codes, UID, GS1, and configure your variables, counters, and shift codes.

Delivered as standard with each marking laser, Lasertrace allows you to create your marking files in a few clicks.

Once the files have been transmitted to the control unit, your marking laser can operate on its own, or be controlled by a PLC.

A Unique Solution In The Market

This module guarantees you a precise and uniform laser marking, whatever the regularity of the pieces, or the complexity of their shape.

Simplify your integration: No need to adjust the focal distance – Easy programming Highest amplitude

Choose the best solution on the market:

Focal 160: up to 60 mm

Focal 254: up to 120 mm

Fastest solution – Reduce your marking cycle time: Less than 100ms to change the focal distance Instant refocusing.

Multi-Level Marking

This unique system adapts to the marking surfaces and the different level of a part instantly without any head movement:

• No character deformation
• Uniform contrast over the entire engraving area
• Possibility of multiple markings on a single part at different levels

The Industry’s Choice For Direct Part Marking

This module automatically adjusts the focal distance without calibration or wait time:

• Guarantee optimal marking regardless of the flatness of the parts or their shape.
• Exceptional range up to 120mm for part height variation for marking of various types of parts on the same line
• Constant contrast & depth

Vision Manager- Immediate Marking Control

• 2D code content verification
• Graduation of the code and trigger of operations: file selection, dialogue with the PLC, activation of alarms, actuators for rejecting faulty parts.
• Used with Lasertrace software, this module includes a Cognex Insight camera with lighting, an auto-focus system, and a protective lens.
• It offers a perfect reading of all 1D and 2D codes

Mini Inline – Innovative Solutions For Permanent Marking



Gravotech has designed a turnkey marking solution that will fit perfectly on your production lines.

Mini in line is a Class-1 nozzle to perform marking without designing a costly class-1 casing to secure all the marking processes. Designed for Marking of large industrial parts: This class 1 solution is fully customizable to fit your parts perfectly.

Recommended for large parts and flat surfaces: engine crankcase, gearbox housing, stamped body parts, fuel tanks, long parts.

Highest level of safety: the Mini-Inline package includes safety sensors (inductive or optical) for part detection.

They are linked to the protective shutters and laser source monitoring. We protect the operators from the fumes and particulates generated by the laser marking. The Mini Inline ensures that we extract all fumes generated by the laser.

Flexibility and reliability can be integrated into all positions and compatible with Robots arm / linear Axis.

A specific and proven design has been used for years in more than 100 manufacturing sites.

Fiber Energy

Essential laser marking – simple, reliable, repeatable



Taking all of our expertise, our proven design, and dependable components we have created the essential laser, the Fiber Energy. Without the need for autofocus or complex multi-level marking, we can now provide a simple stripped-back experience without compromising our product quality. Fiber Energy has a modular design using proven components to identify permanently your parts, with a high-contrast and high durability marking.

We have carried the reliability from the Fiber over to the Fiber Energy, with an IP54 marking head sealed from dust and other projection, designed to cope with a harsh environment. The fiber energy also carries the full communication capacities to integrate into any manufacturing process for traceability. PROFINET, Ethernet IP, Ethernet TCP/IP, and RS232 interfaces are available along with dedicated I/O and USB ports to easily connect it to your workflow.

With fiber sources available in 20W and 30W versions, you can get a precise and powerful marking on a wide range of metallic materials: steel, stainless steel, titanium, aluminum, and more.
