How to reduce vibration in milling

Milling vibration can arise due to limitations in the cutting tool, the holding tool, the machine, the workpiece, or the fixture. To reduce vibration, there are some strategies to consider.

The cutting tool

• • For face milling, the direction of the cutting forces must be considered:
    • With 90° cutters, the dominant forces focus in the radial direction. This creates deflection of the cutter at long overhangs; however, the small axial force is advantageous when milling thin-walled/vibration-sensitive components
    • 45° cutters generate evenly distributed axial and radial forces
    • Round insert cutters direct most of the forces up the spindle, particularly at small depths of cut. Also, 10° cutters transmit the forces primarily into the spindle, which reduces vibrations generated due to long tool overhangs

• Choose the smallest diameter possible for the operation
• DC should be 20–50% larger than a_e
• Choose a coarse pitch and/or a differential-pitched cutter
• A cutter with a low weight is advantageous e.g, a cutter with aluminum body

With thin-walled, unstable workpieces use a large entering angle = small axial cutting force.​
At long tool overhangs, use a small entering angle = high axial cutting force.

The holding tool

The Coromant Capto® modular holding tool system enables tools to be assembled to the required length while maintaining high stability and the smallest run-out.

• Keep the tool assembly as rigid and short as possible
• Choose the largest possible adaptor diameter/size
• Use Coromant Capto® adaptors with oversized cutters to avoid reduction adaptors
• For small milling cutters, use a tapered adaptor if possible
• In operations where the final pass is located deep in the component, change to extended tools at pre-determined positions. Adapt cutting data for each tool length
• For spindle speeds over 20 000 rpm, use balanced cutting and holding tools

Oversized cutter

Always use the shortest possible tool length.
Extend length successively.​

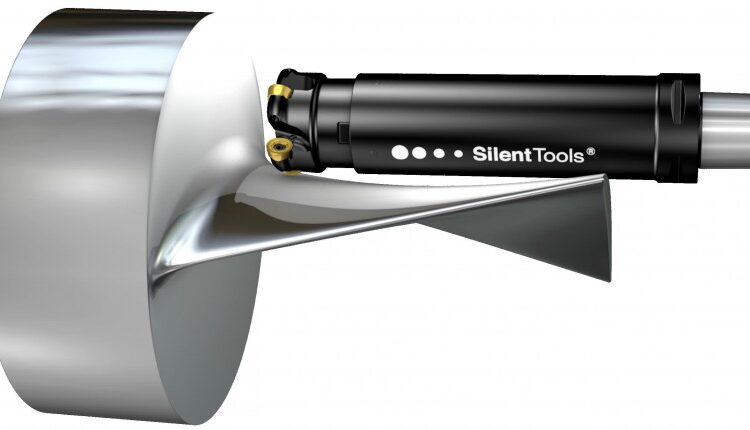

Silent Tools dampened milling cutters

For overhangs greater than four times the tool diameter, milling vibration tendencies can become more apparent, and Silent Tools damped cutters can dramatically improve productivity.

The cutting edge

To reduce the cutting forces:

• Choose a light cutting geometry, -L, with a sharp edge, and a grade with a thin coating
• Use inserts with small corner radii and small parallel lands

Sometimes adding more damping to a system can decrease the vibration tendencies. Use a more negative cutting edge geometry and a slightly worn cutting edge.

Cutting data and tool path programming

• Always position the cutter off-center in relation to the milled surface
• With KAPR 90° long edge cutters or end mills, use low radial immersion: max a_e= 25% DC and high axial cut: max a_p = 100% D_e
• In face milling, use a small depth of cut, a_p, and high feed, Fz, with round inserts or high feed cutters with small entering angles
• Avoid vibrations in corners by programming a large path radius, see milling inside corners
• If the chip thickness becomes too low, the cutting edge will rub rather than cut, causing vibration. In such instances, the feed per tooth should be increased

The machine tool

The machine condition can have a large influence on milling vibration tendencies. Excessive wear on the spindle bearing or feed mechanism will result in poor machining properties. Choose machining strategies and cutting force directions carefully to take full advantage of the machine’s stability.

Each machine spindle has natural areas that are prone to vibration. The areas of stable cutting are described as stability lobes, and increases as the rpm increases. Even a small increase, as low as 50 rpm, can move a cutting process from unstable, with vibration, to stable.

Workpiece and its fixture

Consider the following when milling components with thin wall/base and/or when the fixture is weak:

• The fixture should be close to the machine table
• Optimize the tool path and feed direction towards the machine’s/fixture’s strongest node to obtain the most stable cutting conditions
• Avoid machining in directions where the workpiece is poorly supported
• Up milling can reduce vibration tendencies when fixture and/or workpiece are weak in a specific direction

For weak fixtures, use a feed direction into
machine table​

Note that the first step should be made at
half the depth of the second, third, etc.​
