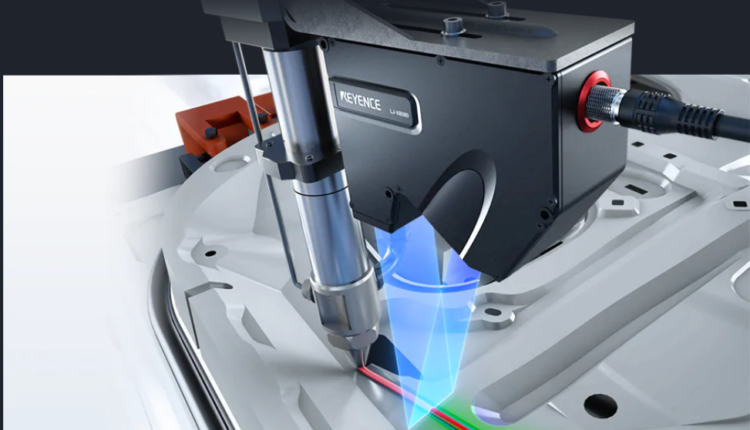

Capturing the true shape of a target is critical for performing reliable inspections. With 3200 points/profile, the LJ-X8000 Series captures the target shape in high resolution, enabling accurate inline measurement.
Select From a Lineup Designed to Meet Any Application Requirements
| LJ-X8020 | X-axis (width)8 mm 0.31″ |
|---|---|
| LJ-X8060 | X-axis (width)16 mm 0.63″ |
| LJ-X8080 | X-axis (width)39 mm 1.54″ |
| LJ-X8200 | X-axis (width)80 mm 3.15″ |
| LJ-X8400 | X-axis (width)320 mm 12.60″ |
| LJ-X8900 | X-axis (width)720 mm 28.35″ |
Choose a Controller that Fits your Needs
Standard models
Intuitive user interface designed to make programming simple. Set up for inline inspection in 3 easy steps.
Advanced models
Create fully customized solutions with advanced programming capabilities. Adept for handling difficult 3D inspections or integration with external software.
Programming Languages
Windows
-
C#
-
C++
-
VB.NET
-
Python
Linux
-
C++
-
Python
Supported Drivers*
-
HALCON
-
VisionPro
-
LabVIEW
-
Cognex Designer
-
Matrox Design Assistant
