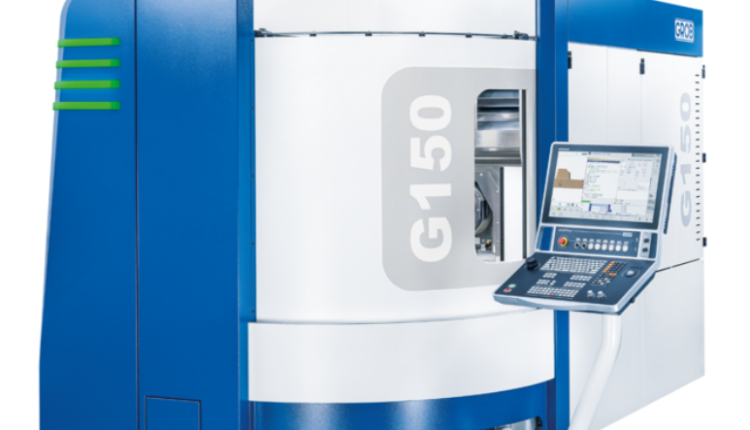

G150

5-axis universal machining center

378
The G150 is the smallest universal machining center in the unique G-module concept of GROB and enables customers from various industries to machine with the highest precision.
With direct and absolute position encoders in all axes, the 5-axis machining center guarantees maximum accuracy for complex components and convinces with an innovative calibration and cooling concept.

Technical data



Working travels in X-/Y’-/Z-axis (mm)

Max. speeds in X-/Y’-/Z-axis (m/min)

Interference diameter

Chip-to-chip time t

Positioning accuracy in X-/Y’-/Z-axis (mm)

Table diameter (mm)

Table load without/with pallet (kg)

Total weight without/with pallet changer (kg)

Tool length for single disk-type tool magazine

450/670/665

50/40/60

580

2.6

0.006

380

250/220

14,600/15,400

265



The benefits at a glance

  • High productivity
  • Optimized availability
  • High visibility
  • Flexible applications
  • Maintainable
  • Compact design
  • Optimized access
  • Round-the-clock service

Unique machine concept

  • Horizontal spindle position
  • Axis arrangement
  • Overhead machining
  • Drive concept
  • Maximum stability
  • Large swivel range
  • Tunnel concept
