DMG Mori: DUE, TRE, QUATTRO – production turning newly defined

By Editorial On Oct 20, 2021

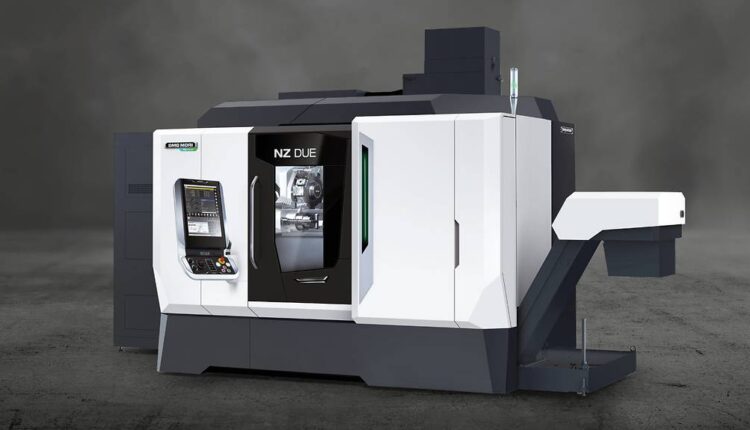

As the latest series in DMG MORI’s production turning portfolio, the NZ platform sets new standards in modularity, flexibility, and productivity for individual customer requirements on a footprint of just 17.8 m².

Two machine bed sizes: short version for workpieces up to 740 mm, long version for workpieces up to 1,290 mm
Highly flexible with up to four machining units for turrets:
- 80 mm Y-axis on each position
- -10° to +100° B-axis possible on all four positions
TWIN spindle as steady rest, Swiss-type functionality, or both side turning
Can be automated with an integrated workpiece unloader, bar loader, or one or two gantry loaders, the robot in the work area, Robo2Go or MATRIS

DMG MORI has incorporated decades of experience in production turning as well as the individual requirements of users into the development of the new NZ series. The result is a highly modular platform with two-bed sizes that offer customers maximum flexibility and productivity: bar and chuck machining is part of the modular system, as is the option to install two, three, or four units with B-axis and a TWIN spindle in the Z-axis. Additionally, DMG MORI offers several automation solutions for the NZ platform.

With the new NZ platform, DMG MORI is redefining production turning – with up to four units and four B-axes on 17.8 m2.

Available in two-bed sizes, the new NZ platform serves a wide range of components. The short version is designed for workpieces up to 740 mm in length, while the long version accommodates components up to 1,290 mm. Chuck machining is possible in both cases up to a diameter of ø 120 mm, and for bar machining, the passage is ø 65 mm. Including the 3.30 m long bar feeder, the NZ requires only 17.8 m² of floor space. Stability and precision in machining are ensured by the symmetrical architecture bed with high thermal stability and equal chip removal performance in all positions. On the control side, the NZ platform is equipped with a 19″ DMG MORI SLIMline touch panel and FANUC 30iB.

Maximum modularity with up to four milling units

Due to the modular machine concept, the NZ platform includes the NZ DUE, NZ TRE, and NZ QUATTRO. This means that two, three, or four-machining units can be placed in the workspace.

The highlight of the NZ platform is the individual equipment options, allowing each user to define a manufacturing solution tailored to their exact requirements. Due to the modular machine concept, the NZ platform includes the NZ DUE, NZ TRE, and NZ QUATTRO. This means that two, three, or four milling units can be installed in the workspace. Each of these units can be freely positioned and has a Y-axis with 80 mm travel and a B-axis with a swivel range of -10° to +100°. There is also the option of a TWIN spindle in the Z-axis with a diameter of ø 65 mm. It serves as a hydraulic steady rest and offers a Swiss-type function with up to 5,000 min-1 speed in the guide bush. Furthermore, the TWIN spindle can be used for turning at 4,000 min-1 and 60 Nm.

Even more productive with automation solutions

DMG MORI offers a range of automation solutions so that users can also secure their competitiveness in the long term with the NZ platform. An integrated workpiece unloading unit and a bar loader is just as much part of the portfolio as autonomous production via one to two gantry loaders or a robot in the workspace. In addition, the NZ platform is available with the Robo2Go or MATRIS.

The NZ platform allows efficient machining of turning parts for industries like hydraulics, engineering, and automotive.

This content was originally published on the DMG Mori website.
