How To Choose A Suitable Welding Table (Fixture Table)?
Did you know that a high-quality welding table can improve your welding quality and provide comfort whether you are a welder or has anything to do with fabrication? They can significantly impact your project results whether you are experienced or beginner. There are plenty of things while considering a suitable fixture table for YOU. It could start from what should be the size? Should it be 3D, 2D, Rotary, or slotted table? What should be the thickness? This article is going to cover all the above questions, so you don’t have to worry.
WHAT IS A WELDING TABLE?
A flat & stable surface for welders that safely support welding pieces. Fixture tables take care of your comfort by allowing you to stand or sit while welding. They also take care of incredibly high temperatures and support high power machinery. CYCLOTRON welding tables are built considering all the welding Ergonomics. They have adjustable moving wheels for portability on the shop floor. They are electrically conductive, which allows you to connect a ground to the table instead of the metal pieces that you’re welding.
With all these pros one can definitely say that welding tables are worth investing in.
WHEN CHOOSING A WELDING TABLE, THINGS YOU SHOULD CONSIDER ARE:
1) Size of the table:
Fixture tables come in various sizes and shapes. Starting from 1 x 1m and goes up to more than 5m in length. These tables with modular sizes to adjust the table sizes for different work projects.
If your welding projects have big and heavy metals involved it is better to go for larger tables. If your projects are smaller in dimensions but heavier (greater than 2 tons) in weight, it is better to go with 25mm thickness tables rather than smaller 16mm thick.
People having projects which are less than 200 kg in weight can opt for a 12 mm thick table.
Depending upon the size of the fixture it is advisable that the complete fixture should be placed on the table
2) Hole center distance:
The standard hole center distance of welding tables is 50mm. When your welding projects are larger in size it is better to go with a 100 mm distance in order to reduce the table cost.
3) Legs:
In standard configuration, legs come with two options
- With leveling pads
- With Castor wheels
If you have a small welding shop and YOU don’t have to move the table every now & then, go with the leveling pad option. But if you have a big shop floor or heavy workpieces & need to move from one place to another, Castor wheels are the best.
4) Type of table:
Generally, the fixture table comes with 3D, 2D, and Rotary types.
3D welding tables– Here YOU get 5 precision machined surfaces. These types of tables provide you with clamping options outside the table with help of side plates.

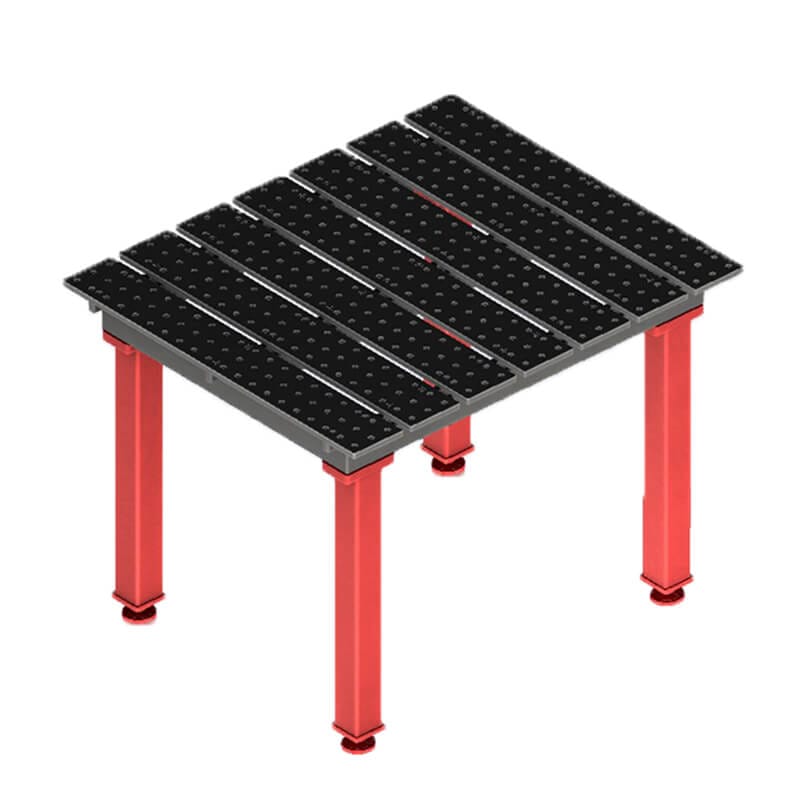

2D welding tables– The top surface is precision machined. Smaller workpieces can go with these types of tables.
Rotary welding tables– Has rotating top surface. This type of table is used for welding projects where the welder can sit at one place, and the welding position can be brought to the welder for increased accuracy in welding.
Buy branded table:
Buying a branded table will always give you benefits in terms of accuracy of the table, finished materials, modularity, the welding clamps options, service they provide.
Thus, investing in a welding table would be great for your Business ROI. A welding table can increase your welding quality and provide you with a safe and stable surface. With the above information, it will be easy for YOU to pick up your best suitable welding table for your next project.
Well, CYCLOTRON provides you the best welding tables perfectly suitable for each of YOUR welding projects. Check out our products.
