The Ultimate in Precision & Flexibility

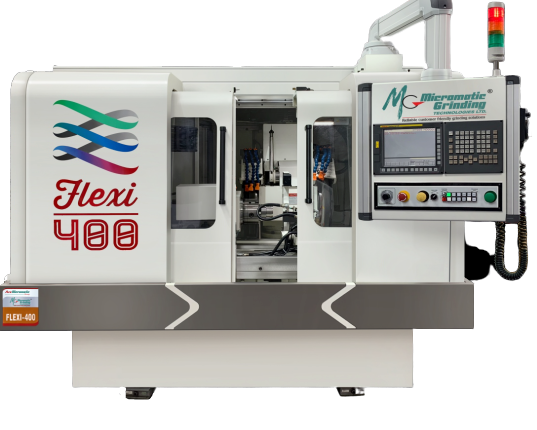

Flexi is a CNC Universal Grinding machine suitable for grinding OD, ID, and Shoulders in a single chucking to achieve the highest precision in size and geometry.
The machine bed construction is from high grade cast iron & box-type structure. The machine is capable of high-speed grinding up to 60 m/sec wheel surface speed.
The axes move on High precision Linear mot guideways for precise positioning & repeatability with a straightness accuracy <0.002 mm over 400 lengths of the standard test piece.
Salient features of this machine:
- Easy to operate the machine through pictorial screens.
- Lesser changeover time through Fast Set.
- Standard 9 wheel profile through the dressing.
Specification of Flexi
| Specifications | Flexi 400 | Flexi 630 | Flexi 1000 |
|---|---|---|---|
| Centre Height | 175 mm | 175 mm | 175 mm |
| Admit between Centre | 400 mm | 630 mm | 1000 mm |
| Swiveling range | -15 to +225 degree | -15 to +225 degree | -15 to +225 degree |
| B- Axis Resolution | 0.0001 degree | 0.0001 degree | 0.0001 degree |
| Grinding Wheel Size (OD x Thick X Bore) Left Side | 500 x 40 (50ROS) x 203.2 mm | 500 x 63 (80ROS) x 203.2 mm | 500 x 63 (80ROS) x 203.2 mm |
| Grinding Wheel Size (OD x Thick X Bore) Right Side | 500 x 40 (50ROS) x 203.2 mm | 500 x 63 (80ROS) x 203.2 mm | 500 x 63 (80ROS) x 203.2 mm |
| Spindle motor power (built in type) | 7.5 kw | 7.5 (11) kw | 7.5 (11) kw |
| Peripheral (surface) speed | 60 m/sec. | 60 m/sec. | 60 m/sec. |
| Floor space Front x Depth (Basic machine) | 3100 x 2800 mm | 3500 x 2800 mm | 4200 x 2800 mm |
| Machine weight (Approximate) | 4500 kg | 5500 kg | 6500 kg |
( ) Optional Feature
Note: All specifications and designs subject to alteration without notice.
