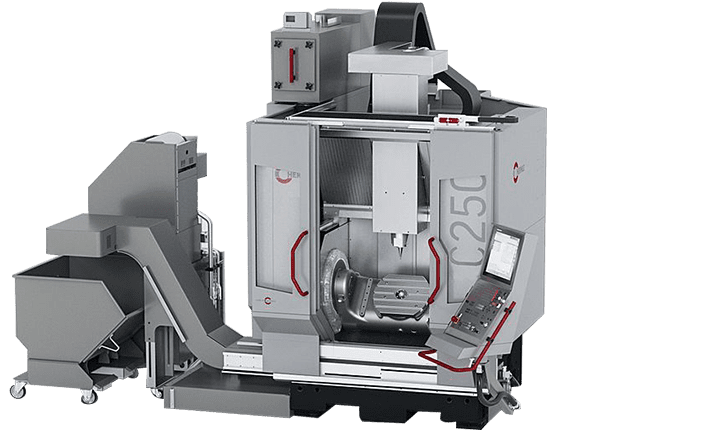

As the entry-level model in the world of Hermle, the C 250 Performance-Line machining centre meets the highest standards of quality and durability.
Features
- High-End Simultaneous 5 Axes
- Modified Gantry Design
- Mineral Casting for Optimal Dampening
- 3 Axes In the Tool And 2 Axes in the Workpiece
- Precision, Reliability, Standard for Accuracy
- Patented Spindle Design
- Energy Efficiency
Specification
| Technical Data | C 250 U |
|---|---|
|
Traverse Path (X-Y-Z)
|
600-550-450 mm
|
|
Speed
|
15000/18000 rpm
|
|
Rapid Linear Traverses (X-Y-Z)
|
35m/min
|
|
Linear acceleration (X-Y-Z)
|
6m/s2
|
|
Control Unit
|
TNC 640
|
|
Rigid Clamping Table
|
800 X 616 mm
|
|
Max. Table load
|
1100 Kg
|
