Create large parts up to 1 to 2 meters
The ability to use 3d printing to enhance business operations, reduce costs and improve efficiency is exactly why an FDM printer has become a popular solution. If you’re looking for a way to produce detailed and big objects our large volume 3D printers are an excellent choice. They have a much larger build size than most other industrial 3D printers and can print objects fast at high resolution.
Applications
- Automotive
- Naval
- Foundry
- Medical Equipments
- Railway
- Aerospace
- Appliances
- Prototype
Features
- THE ENCLOSED FRAME: Shielded printing: An insulated enclosed metal frame ensure optimum even temperature control and the glass doors offer an optimal view of the print. Further improving safety is the 10x compatibility with standard ventilation systems, for fume and emission control, making it a best practice example for 3d printing in industrial environments.

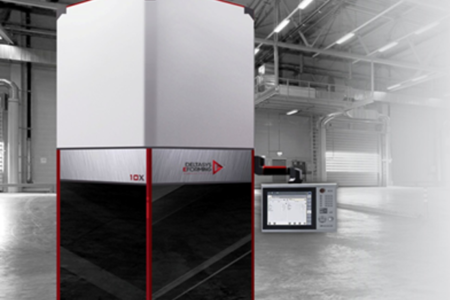

- THE BUILD PLATFORM: Large scale prints: DELTASYS EFORMING makes machines for big prints, and the 10X is no exception. With a building envelope of one cubic meter, the machine is made up for 3d printing of large–scale industrial objects, enabling countless application possibilities.
- SUPERIOR HARDWARE: The high-end motion controller, ball screws, and servo motors result in in5Micron positional accuracy and high speed up to 15,000 mm/min.
- ALUMINIUM BED: Set and Forget: Reaching temperature up to 120oC, Our fixed aluminum bed promotes a set and forget mentality, requiring leveling only during installation
- REMOTE MANAGEMENT: 10X provides remote print monitoring with our Ethernet camera. The remote monitoring system is capable of wide viewing the progress of your print 24/7.
- PURPOSE BUILT PRODUCTION READY
- -Depend upon customer application we customize our machines in size, accuracy, material support
- -EXTRUDER- Pellet extruder or Filament extruder
- -MOTOR- Servo or STEPPER
- – Enclosure- with hot air circulation, just closed, or open-air
- -BUILD VOLUME- ( X-1000mm Y-1000mm Z-1000mm), (X-500mm Y-500mm Z-500mm) and also available in other custom sizes.
Device Specification
| Build Volume | X-1000mm Y-1000mm Z-1000mm |
| Material Container | Spool |
| Nozzle diameter | 0.6, 0.8, 1 |
| Support | Soluble |
| Extruder | Dual (Upgraded for more demanding material) |
| Extruder cooling system | Radial fan cooling the extruder block, one fans cooling the print |
| Hot End | DE Smooth flow1 |
| Material End Stop | Mechanical |
| Platform | CNC Machined Aluminum build plate |
| Connectivity | USB(WIFI, ETHERNET) |
| Screen | Toch Panel(Industrial Screen) |
| Camera | Optional |
Software Specification
| Software Bundle | Simplify 3D, 3DE, cura |
| Supported input file types | .stl, .obj, .3mf |
| Supported Operating System | Mac OSx / windows7 |
